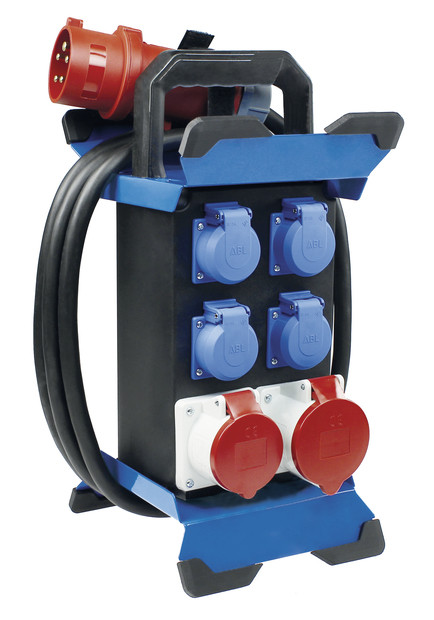

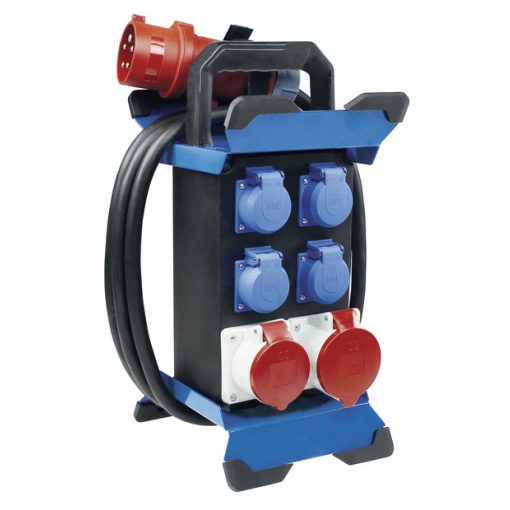

AS-SCHWABE Power distributor STECKY 13, CEE 400V / 32A
The STECKY series includes various power distributors with different CEE inputs. Depending on the model, 6 - 12 sockets for USB, earthing contact and/or CEE plugs are available. Always the right power distributor for every application. All models of the STECKY series are suitable for indoor use and can also be used permanently outdoors. Thanks to built-in fuse protection, the STECKY models protect you from life-threatening electrical accidents.
Technical data
∙ robust housing made of highly break-resistant special plastic
∙ sturdy, powder-coated metal frame with edge protection
∙ large, ergonomic carrying handle and cable winder
∙ dimensions (WxHxD): 230x417x220 mm
∙ tested according to DIN VDE 0620-2-1, IEC 60309, EN 61439-4, DIN EN 50525-2
∙ IP44: foreign body and splash water protected.
Input:
CEE plug 400 V, 32 A, 5-pin
with 4.5 m H07RN-F 5G4 heavy rubber hose cable
Output:
4x protective contact sockets 230 V, 16 A (distributed over 2 phases)
1x CEE socket 400 V, 16 A, 5-pole
1x CEE socket 400 V, 32 A, 5-pin
Fuse protection:
1x FI 40 A, 30 mA, type A
1x LS C 16 A, 3-pole
2x LS C 16 A, 1-pole
